Porch Light with Clear Lens

Type: New
Price: $32.99
Quantity Available: 3


Use arrows to see more images





Click an image to view a larger image

Description

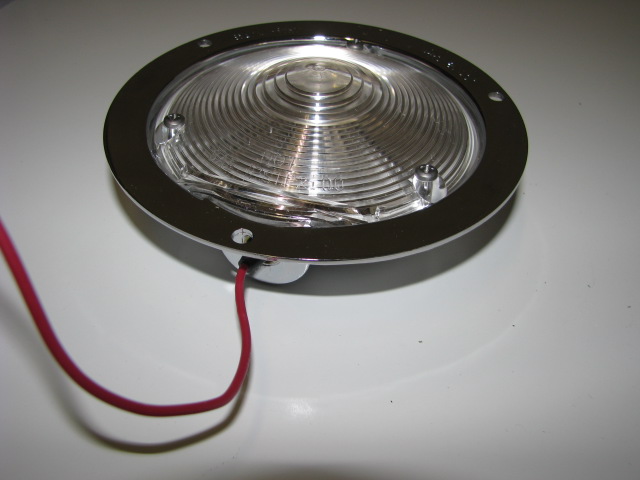

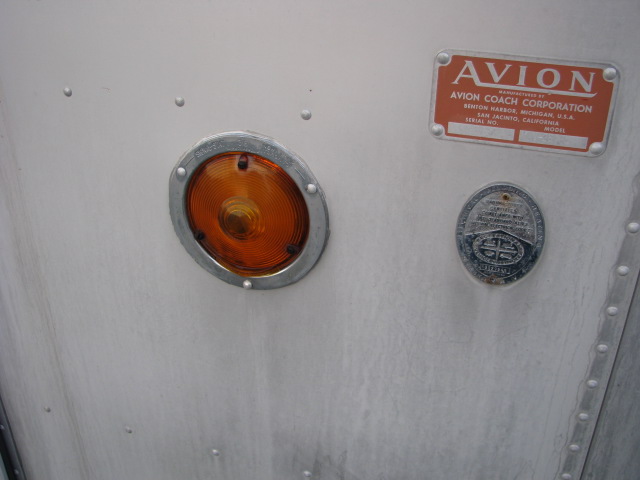

This is a replacement porch light for Airstreams or Silver Streak. It is zinc die cast housing with a chrome plating. Has a 1-1/3" depth behind the flange to the back of the housing. Has the positive lead and is grounded through the trailer when it is mounted. Has a clear polycarbonate lens. We have the amber lens (sold separately) if you would perfer it over the clear (part#CLT026). Mounts through 4-1/2" dia. cutout and depth of 1-1/4" depth behind the flange. Mounting screw holes are 4-1/4" on center and the lens mounting holes are 3-1/16"center. There is a photo of one with an amber lens on an Avion as a reference.


Details

Application: Airstreams or Silver Streaks

Height: 5-1/4"

Width: 5-1/4"

Depth: 2"

Part Number: CLT031
