Description

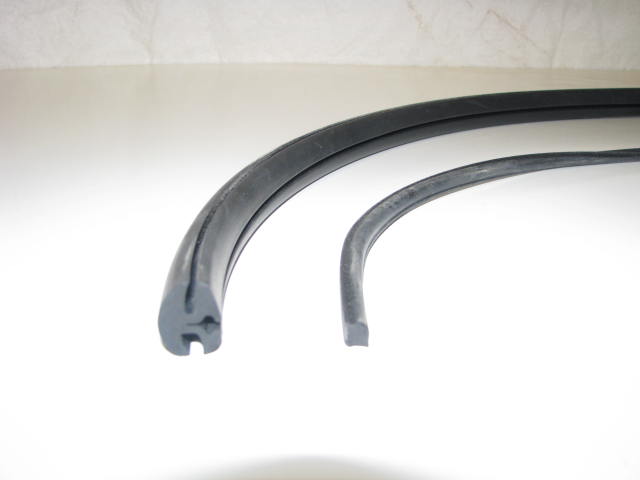

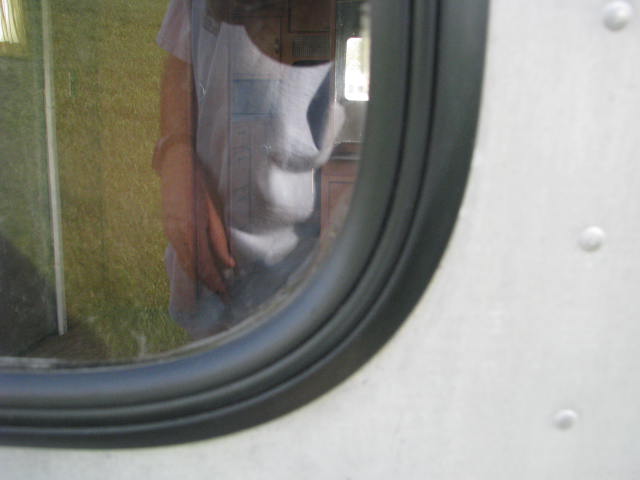

This is oversized window gasket used on Spartan front/side plexiglass windows and some windows in entry doors. This is a little bigger than the original, but we have found that it works better. The oversized gasket can be used for the center window, but because the center window has an aluminum channel on the inside to hold the gasket, this aluminum channel must be bent back for this seal to work.  The specs show this to be used with 1/32" to 1/16" panel and 3/16" to 1/4" glass but we have used this with the original 1/8" plexiglass with fine results.   The glass and panel sit a little deeper in this gasket than the original sized gasket so it stays in the channel better.  The distance between where the aluminum panel and the glass goes is 1/4".  This is the gasket we recommend for all of the front side curved Spartan windows.   Be sure to check your measurements carefully to be sure this will work on your application.

Sold by the foot. The longest length in one piece is 50ft.

*YOU WILL NEED THE LOCK STRIP TOOL TO INSTALL THE LOCKING STRIP FOR THIS SEAL. YOU CAN SEARCH FOR THIS TOOL UNDER THE PART NUMBER COT001.

Details

Application: Spartan front curved plexiglass side windows

Height: 15/16"

Width: 11/16"

Part Number: CHW014
