Description

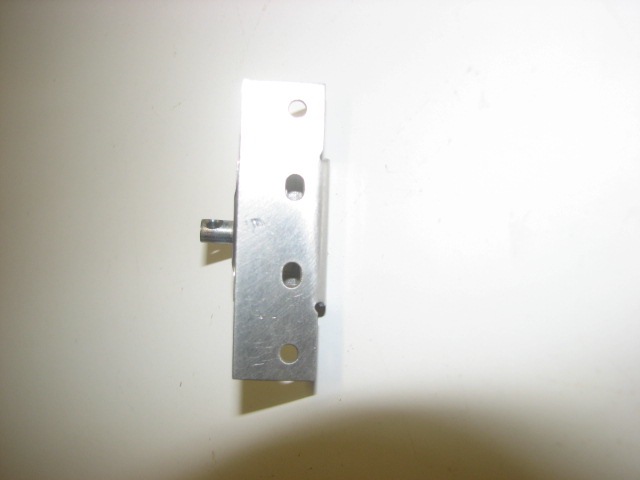

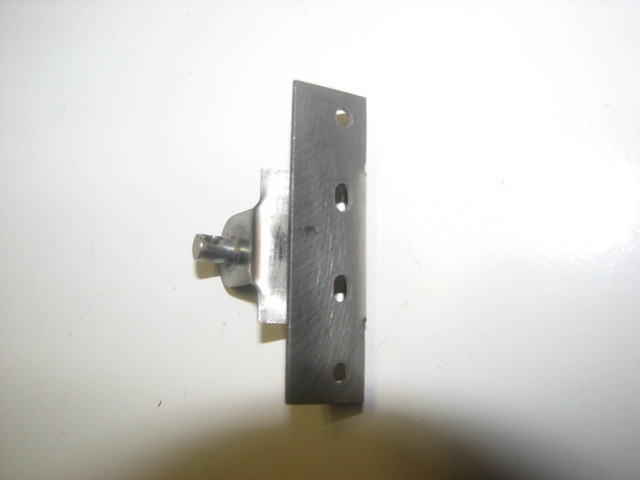

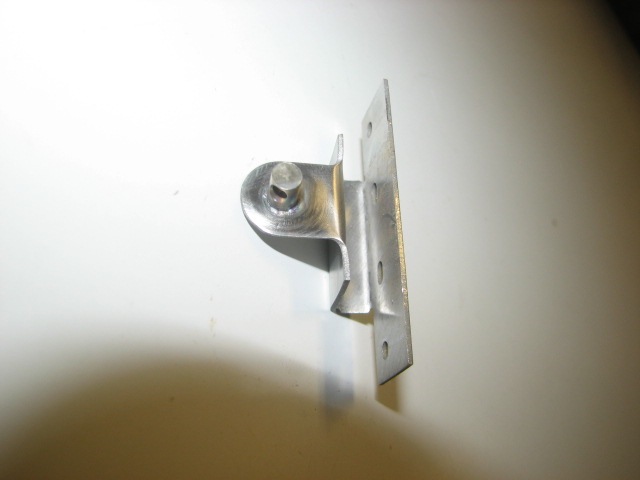

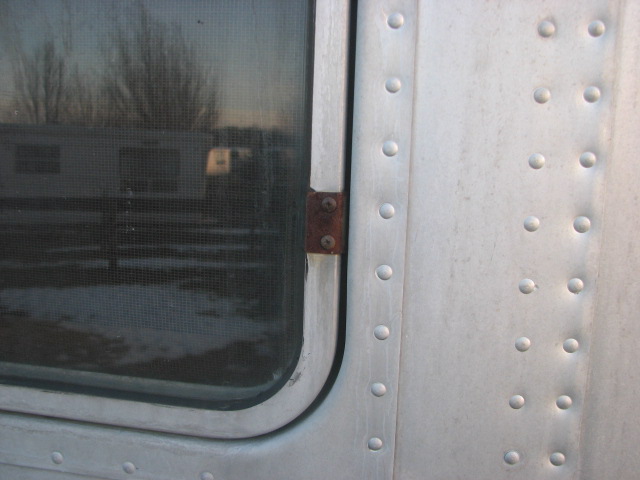

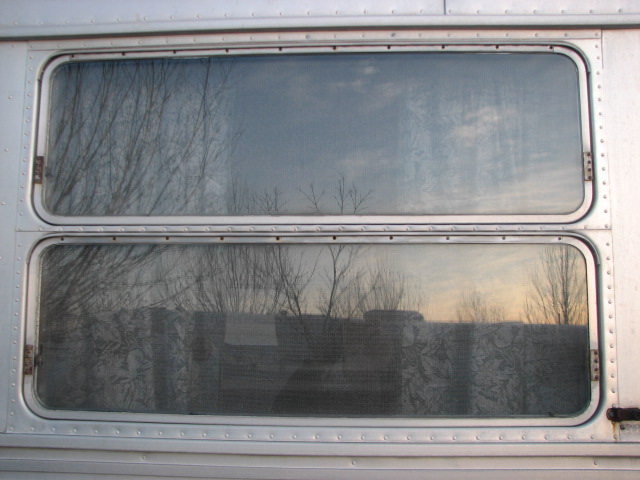

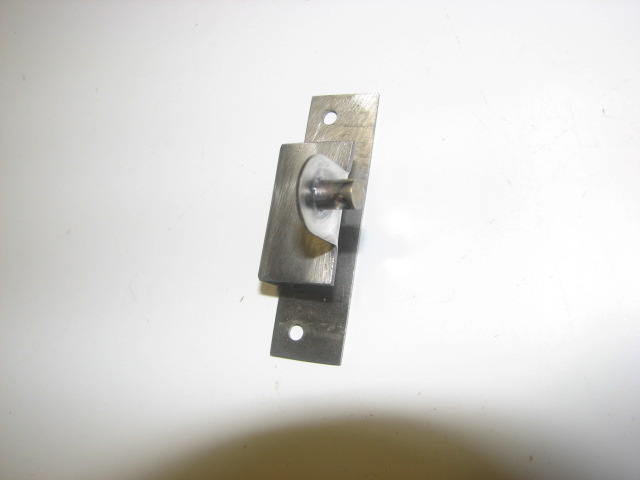

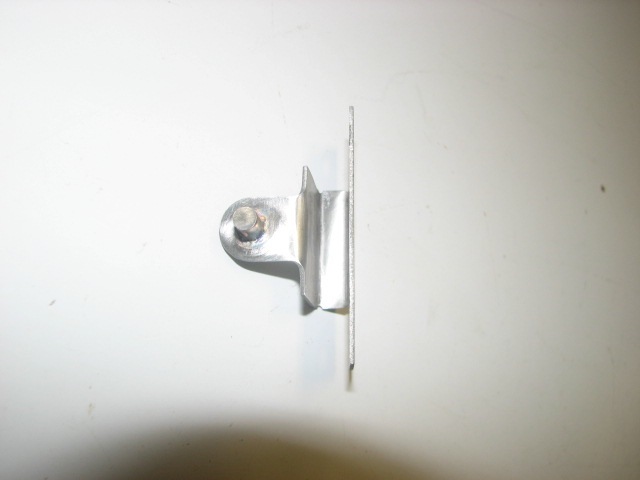

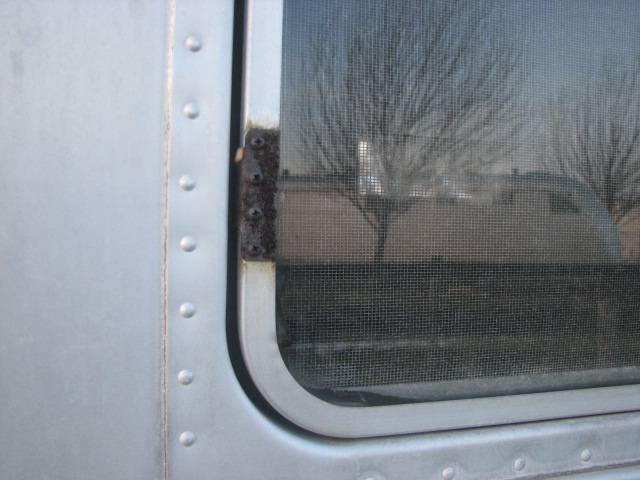

Stainless steel reproduction to replace the steel window clips with retainer pin for Spartan and Spartanette trailers with two part window frames.  The 1950-1951 windows had clips with only 2 screw holes, (see photos).  This clip will work on those windows but you will need to drill the top and bottom holes on your window frame.  If you have the 8" tall two part window frames on a 1950-1951 Spartan this clip will need to modified by grinding one corner down to make it look nicer.  Spartan improved the design in 1953 by going with a taller bracket with 4 holes instead of 2 holes.  These will not rust like the original clips that the trailer windows were manufactured with, (see photos).  Tool marks and some discoloration from manufacturing process is to be expected.  (These are custom made and may have a delay in being delivered when ordered if not already made.)

Details

Application: 1950-1955 Spartans plus some Spartanettes

Condition: New Reproduction, expect minor tool marks in stainless steel.

Height: 2"

Width: 9/16"

Depth: 1"

Part Number: CHW101
