Description

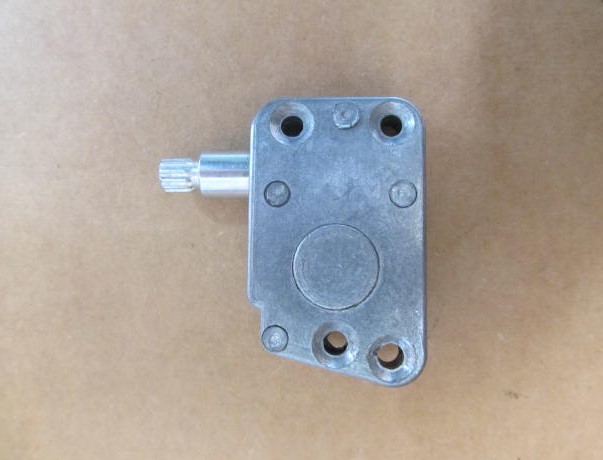

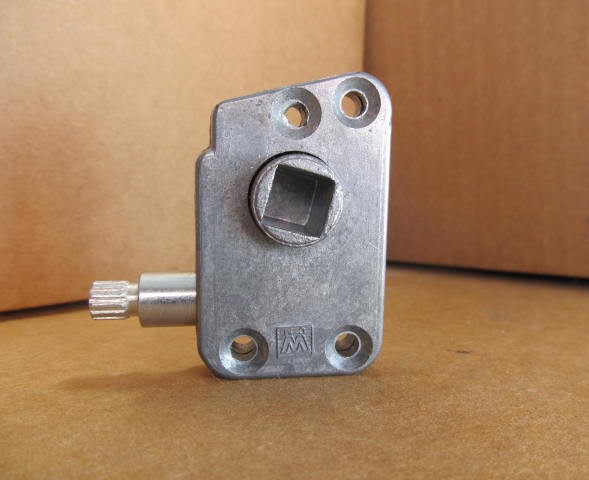

Main body is 1-1/4" wide x 2-3/16" high x 7/16" thick with slant at bottom.  Top holes are 3/4" apart and top to bottom hole straight down is 1-3/4" apart.  Crank projection is 3/4".  Has 5/8" ID round hole with 3/16" hb projection.  This is a right hand operator.

  3/8" square slant sill side mount window operator.

715 PR- Right Hand

Details

Height: 2-3/16"

Width: 1-1/4"

Depth: 7/16"

Part Number: 23-2000
